Jamis X24 Disc

Jamis X24 Disc
  • Color: Palladium
  • Color: Hot Pink
  • Color: Midnight Sky
$499.95
Color:
Size: 24-inch
Please select options Unavailable
This item can be purchased online and picked up at your convenience. If you would like it shipped, please call the store.

Details

IT ALL STARTS HERE...

Everyone remembers their first mountain bike, and for good reason. It's your first do-it-all bike. X.24 Disc is the perfect combination of performance and value, featuring impressive capabilities for under $600.

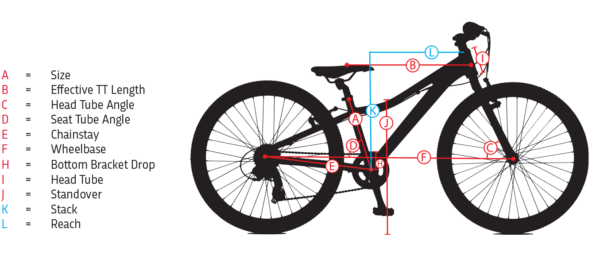

Geometry

Geometry Chart:
SIZE12” B
TT EFFECTIVE 20.39 / 518
HT ANGLE 69°
ST ANGLE 72°
CHAINSTAY 16.14 / 410
WHEELBASE 38.58 / 980
FORK RAKE 1.57 / 40
BB HEIGHT 10.63 / 270
HEADTUBE 3.94 / 100
STANDOVER 22.80 / 579

Specs

Frame 6061 aluminum main tubes, zero-stack head tube, over- sized stays, replaceable derailleur hanger
Fork XC50 24", coil spring, 25.4mm stanchions, aluminum lowers, 50mm travel
Wheels Alloy 36H black anodized disc rims, alloy 6-bolt disc hubs with QR, 14G black electroplated spokes
Tires CST MTB Sport, 24 x 2.4"
Bottom Bracket Sealed cartridge
Crankset Forged alloy crank, 152mm, 32T chainring and protective outer rock-ring
Shifters Shimano RevoShift 35, 7-speed
Rear Derailleur Shimano TY300 rear
Cassette/Freewheel SunRace MFM2A 7DV, 14-34
Chain KMC Z51
Brakes Tektro M280 mechanical disc, 160mm rotors and Tektro youth specific levers
Handlebars MTB alloy riser, 6 ° sweep x 20mm rise x 580mm wide
Tape/Grips Kraton for Grip Shift
Stem MTB alloy threadless, 15 ° rise x 60mm extension
Headset Zero-stack internal cup threadless, 15mm cone spacer
Seatpost Alloy micro-adjust, 27.2 x 300mm, with 31.8mm alloy clamp
Saddle Jamis ATB Youth
Pedals MTB platform, hi-impact resin

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Hot Pink / 24-inch 845436089201 07-3681PK X2418286626K
Midnight Sky / 24-inch 845436089188 07-3679BL X2422877093Y
Palladium / 24-inch 845436089195 07-3680PD X2420900595M
