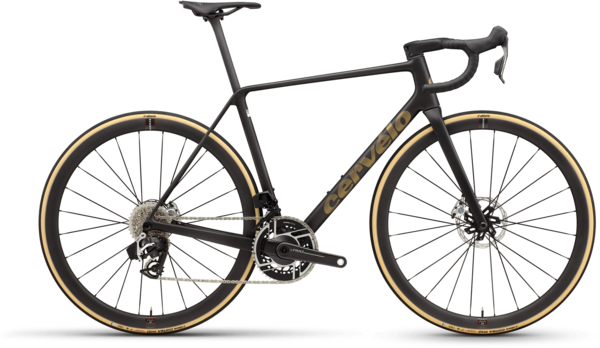

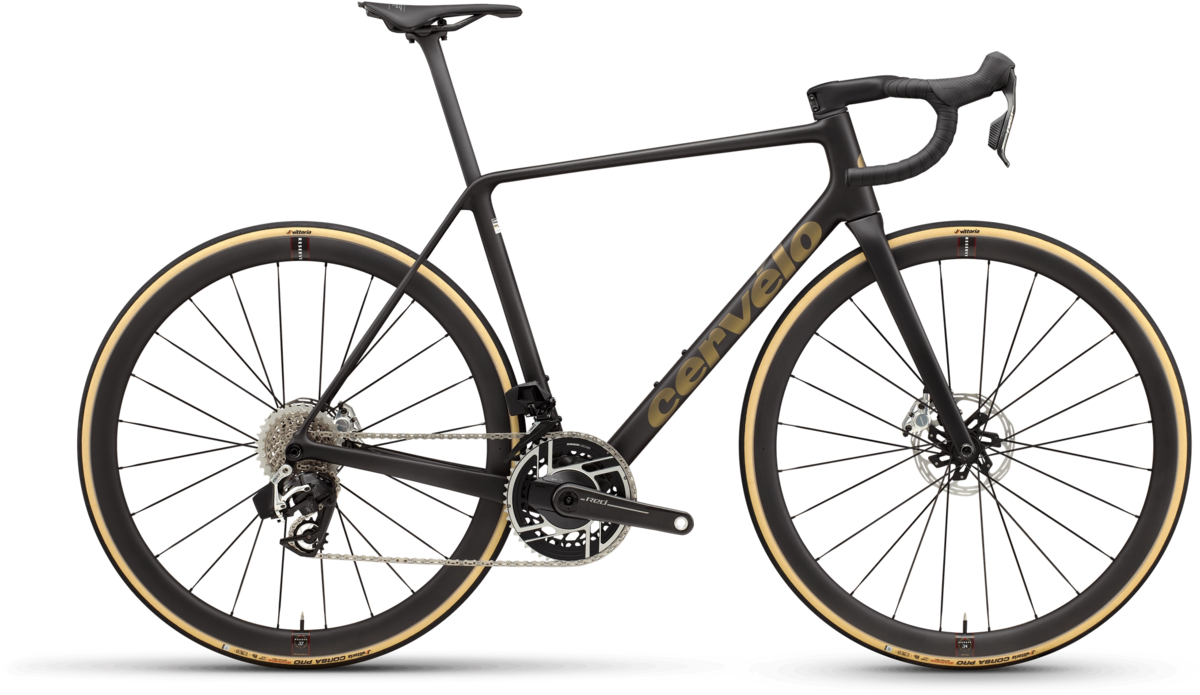

Cervelo R5 Red AXS

Cervelo R5 Red AXS
$14,250.00
Color: Five Black/Bronze
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

The R5 is legendary. From the limits-shattering R5CA to Wout van Aert’s winning day on Mont Ventoux, R5 has been part of Cervelo’s story for over two decades. This all-new R5 is an incredibly light (5.97kg in RED and Dura-Ace builds) road bike that’s also stiff enough to compete at the highest levels of professional cycling—as Pauline Ferrand-Prevot proved when she rode it to victory at this summer’s Tour de France Femmes.

It’s easy enough to make a light bike, but to make a light bike that’s stiff enough to accelerate quickly and transfer power from the sport’s biggest motors? That’s another challenge entirely. R5 is the bike for big days in the high mountains of the Tour de France, and the punishingly steep climbs of the Vuelta a Espana. Bikes built for the mountains must not only accelerate rapidly and climb exceptionally, but descend confidently and predictably. While the UCI mandates a minimum weight of 6.8kg, those of us in the ‘mere mortal’ category will benefit from having the lightest road bike on the market.

Sizes:
Size48cm51cm54cm56cm58cm61cm
Reach | mm 368.7 376.5 383.3 391.1 400.3 408.3
Stack | mm 496.1 520.2 544.6 567.5 590.7 610.7
Head Tube Angle 71° 72° 73° 73° 73° 73°
Front Center | mm 579.1 579.9 579.5 594.2 610.8 624.8
Bottom Bracket Drop | mm 76.5 76.5 74 74 71.5 71.5
Head Tube Length | mm 89.6 109.3 132 156 182.8 203.7
Top Tube Length | mm 506 526 545 565 581 595
Seat Tube Angle 74.5° 74° 73.5° 73° 73° 73°
Standover Height | mm 699.7 731 757.4 779.1 803.4 822.2
Trail | mm 57.3 57.3 57.3 57.3 57.3 57.3
Wheel Size 700c 700c 700c 700c 700c 700c
Fork Offset | mm 57.5 51.5 45.5 45.5 45.5 45.5
Wheelbase | mm 976.8 977.6 978 992.8 1010.3 1024.5
Chainstay Length | mm 410 410 410 410 410 410
Sizes:
Size48cm51cm54cm56cm58cm
Rider Height (cm) 150–160 cm 160–168 cm 168–176 cm 176–184 cm 184–192 cm
Rider Height (ft/in) 4'11"–5'3" 5'3"–5'5" 5'5"–5'7" 5'7"–6'0" 6'0"–6'3"

Specs

Fork Cervélo All-Carbon, Tapered R5 Fork
Wheels Front: Reserve 34TA, DT Swiss 180, 12x100mm, 24H, centerlock, tubeless compatible
Rear: Reserve 37TA, DT Swiss 180, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
Tires Vittoria Corsa Pro Speed TLR G2.0 700x26c
Bottom Bracket SRAM DUB Ceramic, BBright
Crankset SRAM Red AXS E1, 48/35T, DUB, with power meter
Shifters SRAM Red AXS E1
Front Derailleur SRAM Red AXS E1
Rear Derailleur SRAM Red AXS E1
Cassette/Freewheel SRAM Red E1, 10-33T, 12-Speed
Chain SRAM Red E1
Brakes SRAM Red AXS E1
Rotors SRAM Paceline X Centerlock
Handlebars Cervélo HB18 Carbon
Stem Cervélo HB18 Carbon
Headset FSA SL IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°
Seatpost Cervélo SP33 Carbon
Pedals Sold Seperately
Saddle Prologo Nago R4 PAS Nack Lightweight
Extras Cervélo Front Computer/Accessory Mount 887 - Cervélo Rear Accessory Mount - Hammerhead Karoo 3

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Five Black/Bronze / 48cm / 700c 616663231585 0L0R5HRX1C48 R5R297113538
Five Black/Bronze / 51cm / 700c 616663231592 0L0R5HRX1C51 R5R297706661
Five Black/Bronze / 54cm / 700c 616663231608 0L0R5HRX1C54 R5R291064784
Five Black/Bronze / 56cm / 700c 616663231615 0L0R5HRX1C56 R5R291921886
Five Black/Bronze / 58cm / 700c 616663231622 0L0R5HRX1C58 R5R296461008
Five Black/Bronze / 61cm / 700c 616663231639 0L0R5HRX1C61 R5R293175571
