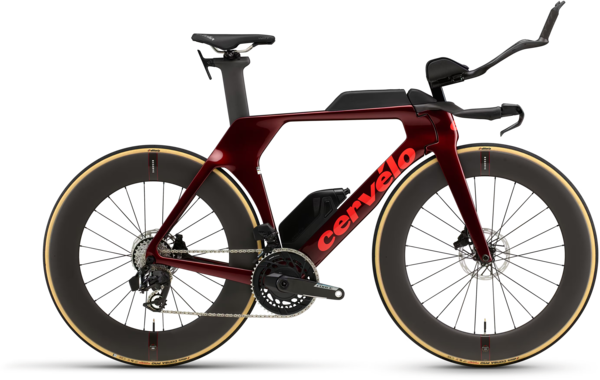

Cervelo P5 Force AXS

Cervelo P5 Force AXS
  • Color: Red Hot
  • Color: Five Black/Black
$11,000.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

P5 is a contre la montre catalyst. It’s made for one thing—helping you go as fast as possible between Point A and Point B.

As at home on the Big Island as it is in a race-critical time trial at the Tour de France, the P5 enables exceptional performances. The past decade of elite road racing has shown the importance of being able to deliver a strong time trial late in a Grand Tour, and the P5 was a key part of Team Jumbo-Visma’s Giro d’Italia and Tour de France wins in 2023.

On the new bike, we focused on creating a fast platform that could be made faster with the latest wheels and cutting-edge fit adaptations. There’s room for a 34mm tire on wide wheels, which improve aerodynamics and reduce rolling resistance. The basebar is lower to reduce CdA but possible stack has increased, and the extensions can now be adjusted between 0 and 30 degrees in five-millimeter increments. For triathletes, we include a variety of storage options, because half the battle is taking in sufficient calories to deliver a strong marathon. Also new on this bike? A size 61 to help all of our tall friends achieve a better fit.

Geometry Chart:
Frame Size 485154565861
Reach | mm 389 406 420 433 446 455
Stack | mm 461 482 498 516 535 556
Head Tube Angle 71° 72.5° 72.5° 72.5° 72.5° 72.4°
Front Center | mm 582 583 602 622 640 654
Bottom Bracket Drop | mm 75 75 75 75 75 74
Head Tube Length | mm 58.5 70.7 88 106.9 126.8 147.8
Standover Height | mm 739 759 775 792 812 906
Wheel Size 700C 700C 700C 700C 700C 700C
Fork Offset | mm 52 43 43 43 43 40.4
Wheelbase | mm 975 976 995 1015 1033 1048
Chainstay Length | mm 405 405 405 405 405 405
Effective Top Tube @75 Deg Seat Tube | mm 513 535 553 571 589 604
Effective Top Tube @79 Deg Seat Tube | mm 479 500 516 533 550 563

Specs

Fork Cervélo All-Carbon, Bayonet P5 Fork
Wheels Front: Reserve 77TA, DT Swiss 240, 12x100mm, 24H, centerlock, tubeless compatible
Rear: Reserve 88TA, DT Swiss 240, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
Axles Front: Cervélo Aero Thru Axle Front, M12x1.5mm, 127mm length
Rear: Cervélo Aero Thru Axle Rear, M12x1.5mm, 170.5mm length
Tires Vittoria Corsa Pro TLR G2.0 700x29c
Bottom Bracket SRAM DUB, BBright
Crankset SRAM Force AXS E1, 50/37T, DUB, with power meter
Shifters Bar-End Satellite Shifter: SRAM AXS Blip controller
Satellite Shifter: SRAM AXS Blip controller
Front Derailleur SRAM Force AXS E1
Rear Derailleur SRAM Force AXS E1
Cassette/Freewheel SRAM Force E1, 10-33T, 12-Speed
Chain SRAM Force E1
Brakes SRAM S900 Aero
Rotors SRAM Paceline Centerlock
Headset FSA IS2 1-1/8, 36° x 45° / 1-1/4, 45° x 45°
Seatpost Cervélo SP23 Carbon
Pedals Sold Separately
Saddle Selle Italia WATT Superflow Ti316

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Red Hot / 48cm / 700c 616663230564 0L0P5FFX2C48 P5F223407008
Red Hot / 51cm / 700c 616663230571 0L0P5FFX2C51 P5F225876871
Red Hot / 54cm / 700c 616663230588 0L0P5FFX2C54 P5F229881324
Red Hot / 56cm / 700c 616663230595 0L0P5FFX2C56 P5F225265506
Red Hot / 58cm / 700c 616663230601 0L0P5FFX2C58 P5F221376318
Red Hot / 61cm / 700c 616663230618 0L0P5FFX2C61 P5F227752221
Five Black/Black / 48cm / 700c 616663230502 0L0P5FFX1C48 P5F309051388
Five Black/Black / 51cm / 700c 616663230519 0L0P5FFX1C51 P5F304238991
Five Black/Black / 54cm / 700c 616663230526 0L0P5FFX1C54 P5F303297904
Five Black/Black / 56cm / 700c 616663230533 0L0P5FFX1C56 P5F305271036
Five Black/Black / 58cm / 700c 616663230540 0L0P5FFX1C58 P5F309898668
Five Black/Black / 61cm / 700c 616663230557 0L0P5FFX1C61 P5F309617521
