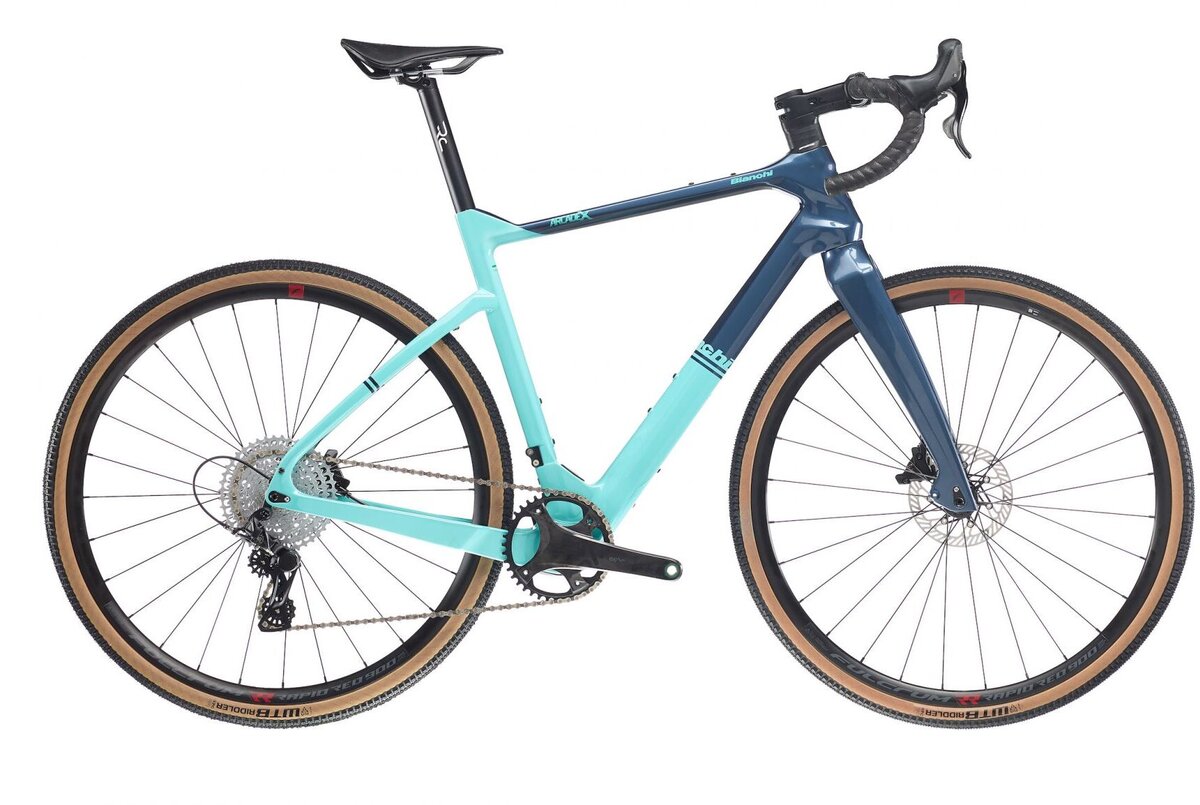

Bianchi ARCADEX EKAR 1x13SP

Bianchi ARCADEX EKAR 1x13SP
  • Color: Blue Note
$2,899.00
$4,500.00
Color: Blue Note
Size: Select size
Please select options Unavailable
This item can be purchased online and picked up at your convenience. If you would like it shipped, please call the store.

Details

Note: They come stock with the 13 speed Ekar gravel drivetrains. (Steve has been riding this Ekar drivetrain on a Cervélo Aspero 5 and loves the gear ratio & range. Stop by and chat with him if you want more info.) If you would prefer a Shimano or SRAM, we can swap out the drivetrain.


DESIGNED FOR
Expert rider who loves to ride fast and in control no matter the terrain.

RIDING CONDITIONS
Riding on paved and unpaved roads with drops of less than 15 cm.

FRAME
Arcadex carbon, seat post 31.6mm, thru axle 12x142mm, flat mount disc, pressfit 41, compatible with 42mm tire and mudguard Sizes: XS-S-M-L-XL

FORK
Full Carbon 1.5" flat mount, disc brake, thru axle 12x100mm

HEADSET
FSA SMR HS with 1-1/8” custom top cone Bianchi

SHIFTERS
Campagnolo EKAR

REAR DERAILLEUR
Campagnolo EKAR 1x13sp

CRANKSET
FSA Gossamer Pro 40T 1x13 C, Crank Length: 170mm-XS-S, 172.5mm-M-L, 175mm-XL

BOTTOM BRACKET
Fsa BB-CF86/CZ Stainless bearing for Road carbon / alloy MegaExo crankset Press-Fit 86,5x41

CHAIN
Campagnolo EKAR 1x13

CASSETTE
Campagnolo EKAR 13s 10-44T

BRAKES
Campagnolo included in the shifter

ROTOR
Campagnolo Rotor, AFS 160mm

WHEELS
Fulcrum Rapid Red 900 DB 2WF-R C22 AFS, alloy, 2-Way fit Ready, rim profile 24mm, width 27,1mm, 28 spokes, HH12- rear HH12/142 N3W

TIRE
WTB Riddler Race 700 x 37c, Dual DNA Compound, 60tpi Casing

STEM
Reparto Corse, Alloy 6061 , 1 1/4", raise 0°,Oversize, plastic adaptor for hose cover 1 1/4", finish black; Ext: 80mm-XS -S, 100mm-M, 120mm-L/XL

HANDLEBAR
Reparto Corse Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 x size 40cm and 130mm x size 42-44-46cm, size: 40cm=XS/S - 42cm=M/L - 44cm=XL

GRIPS
La Spirale Ribbon cork

SEATPOST
Reparto Corse Alloy shaft AL6061, alloy head, 15mm offset, 31,6mm, Length: 300mm/XS; 350mm/S-M-L-XL

SADDLE
Selle Italia ModelX Superflow FeC, lenght/wide 245x145mm

*Based on component availability, Bianchi reserves the right to make changes on specifications without notice.



Part Numbers

Option MPN Store SKU
Blue Note / Small YSBX1ISMGX BIA33980282E
Blue Note / Medium YSBX1IMDGX BIA33851797E
Blue Note / Large YSBX1ILGGX BIA33529168E
